3000 series amplifiers - There are two models of the 3000, the guitar (3000G) and the bass (3000B) versions. These amplifiers are a unique Plush design using 6 6L6GC tubes to give about 160 watts of power. Controls are the same as the 1000-1060 series amplifiers.

spacer

Plush 3000B Front View
The round vents are usually found on this range. The controls are the same as the 1060 amplifier with the addition of a dark switch for the first channel, a bright switch for the second channel and a standby switch.

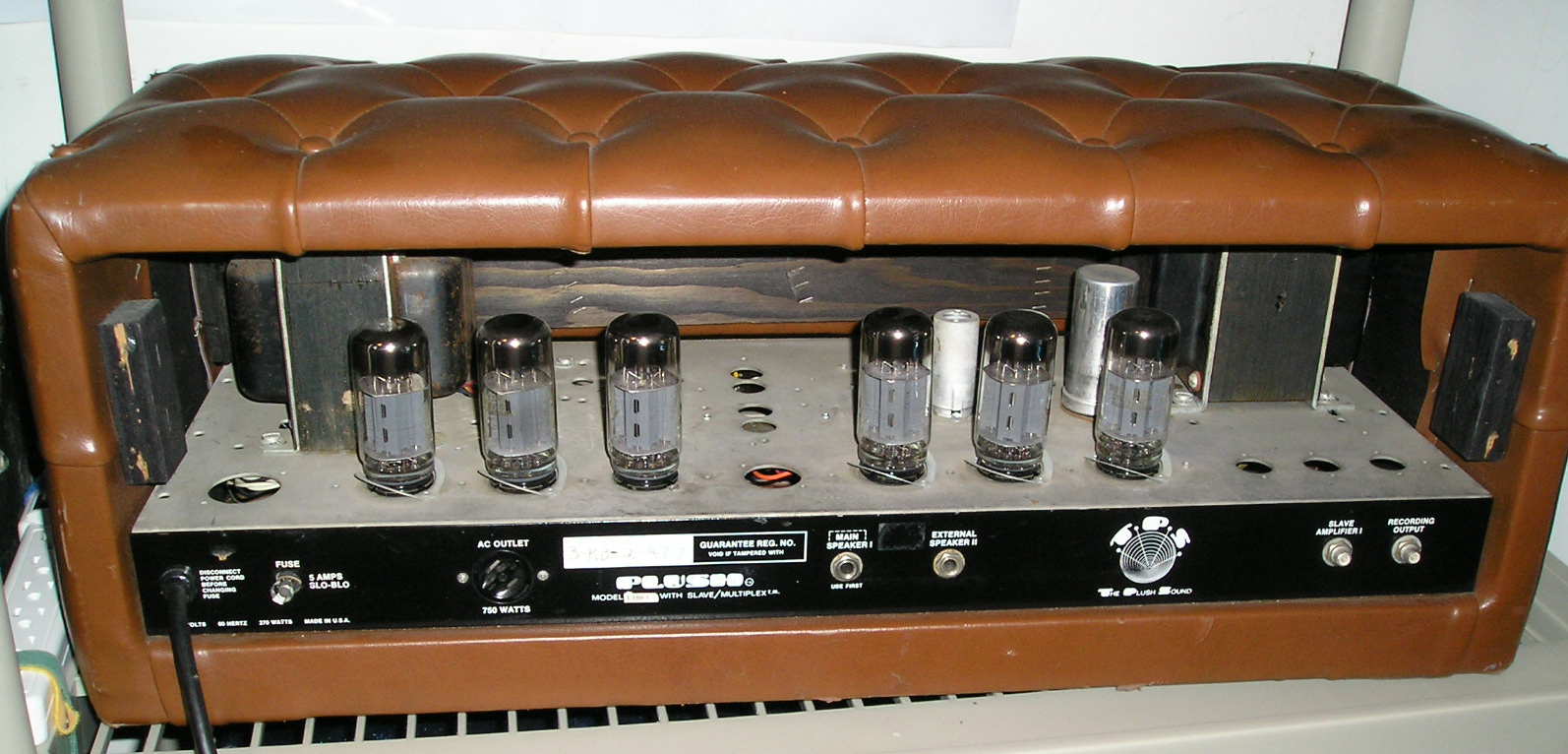

Plush 3000B Rear View
The amplifier has 6 6L6GC tubes and 3 pre-amp tubes (most are hiding behind the power tubes). One slave and one recording output and two speaker jacks. This amplifier is in the tan covering.

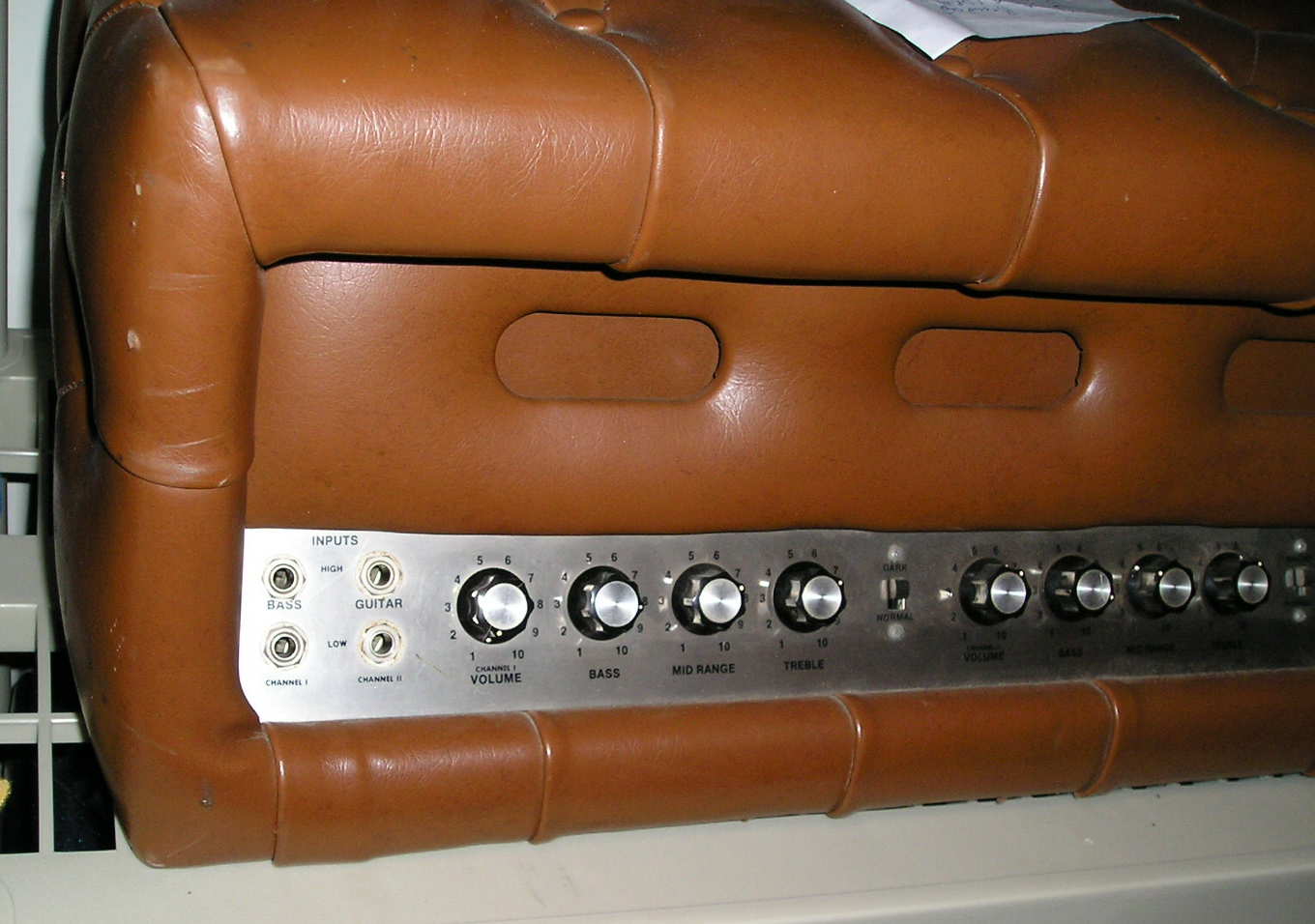

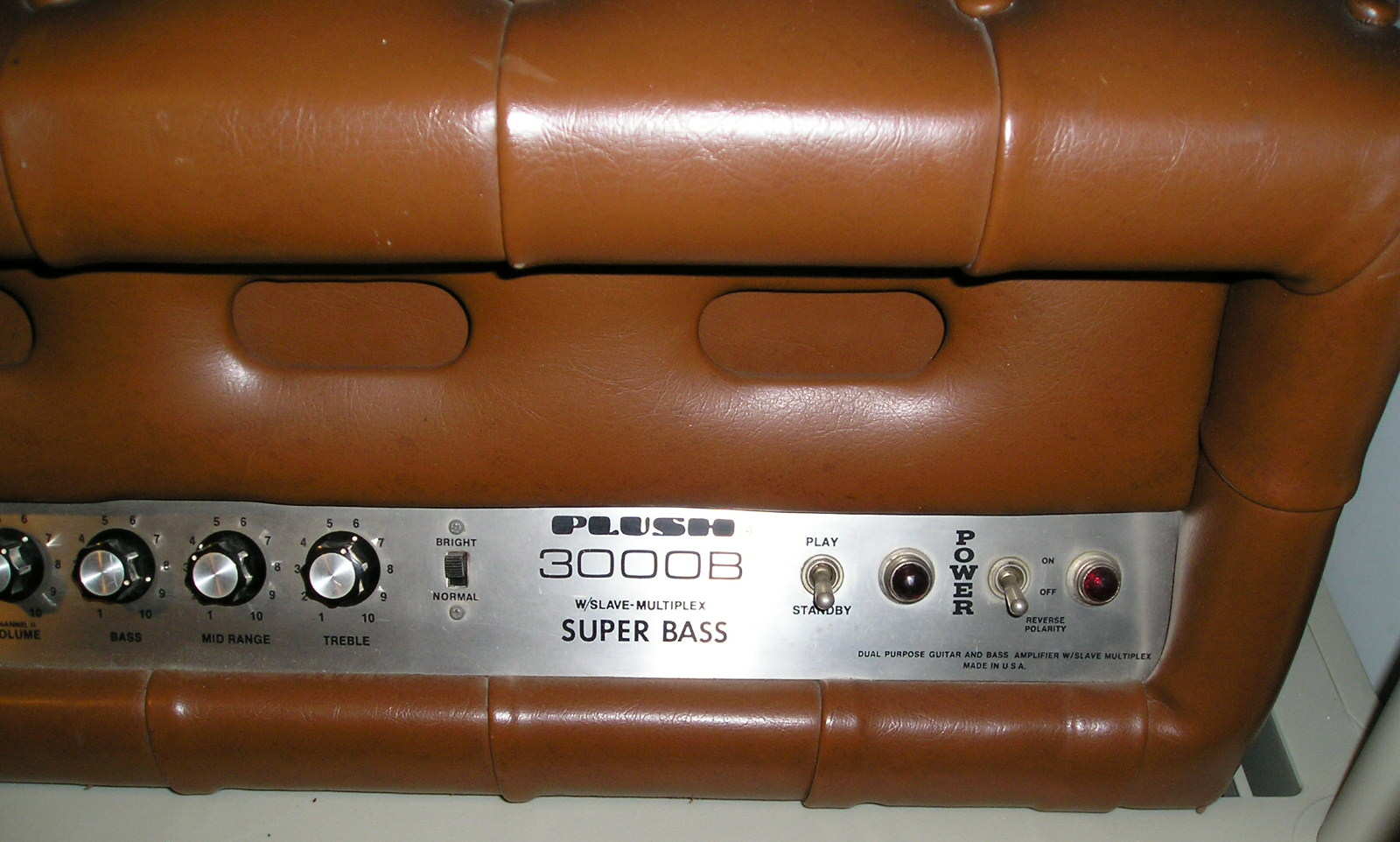

Plush 3000B Control Panel View

The controls are the same as the 1060 with the added switches to darken one channel and brighten the other.

Plush 3000B Chassis Bottom View
Have to upload this shot still, but it can be seen that the circuit is listed as Prototype.

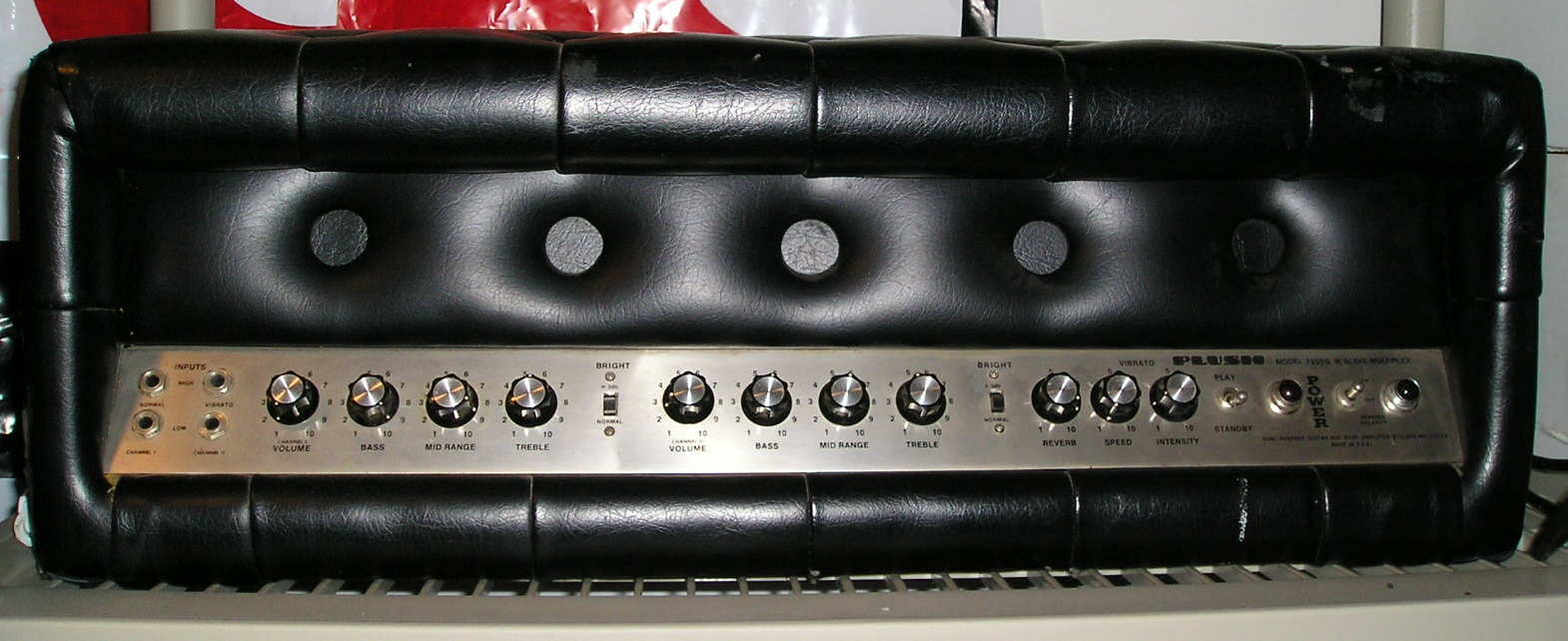

Plush 3000G Front View
The round vents are unique to this range. The controls are the same as the 1000 amplifier with the addition of bright switches for the two channels and a standby switch.

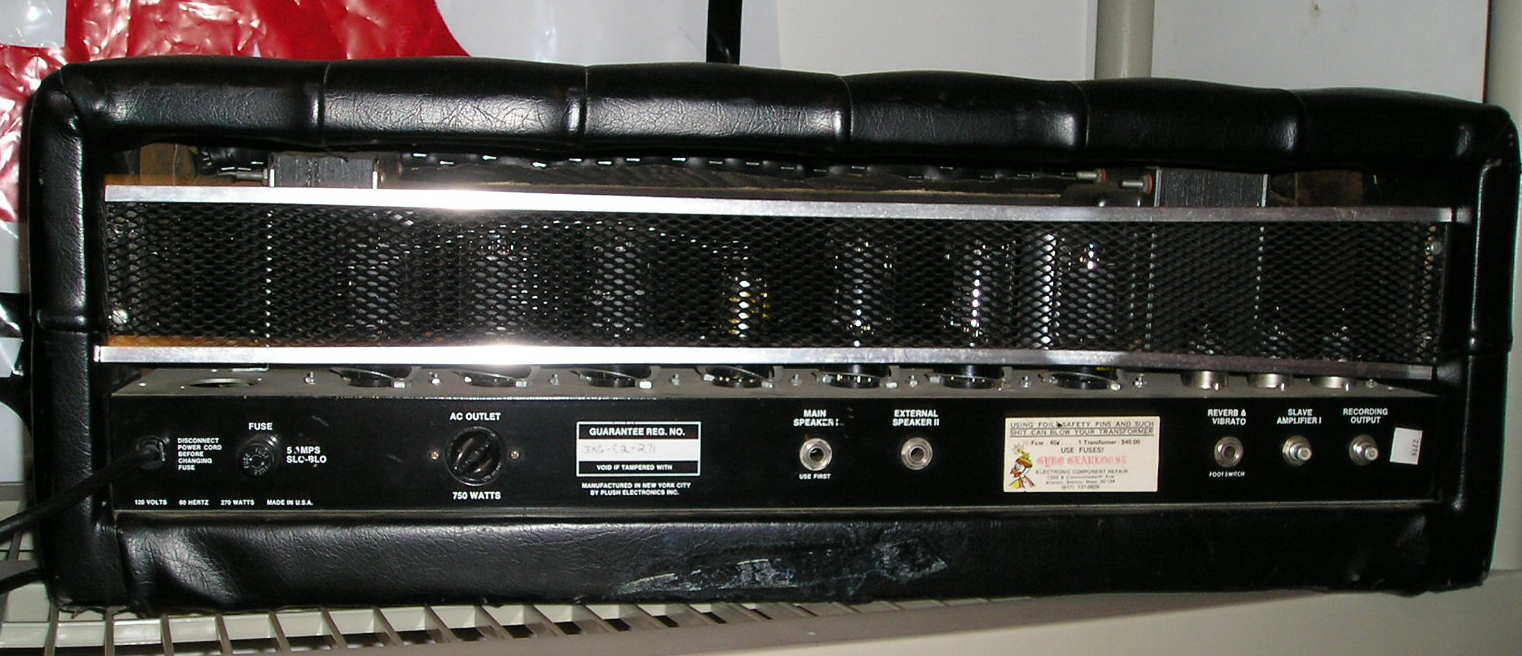

Plush 3000G Rear View
The amplifier has 6 6L6GC tubes and a bunch of pre-amp tubes and a voltage regulator tube. One slave and one recording output, a footswitch for the reverb and tremolo (mis-marked vibrato) and two speaker jacks.

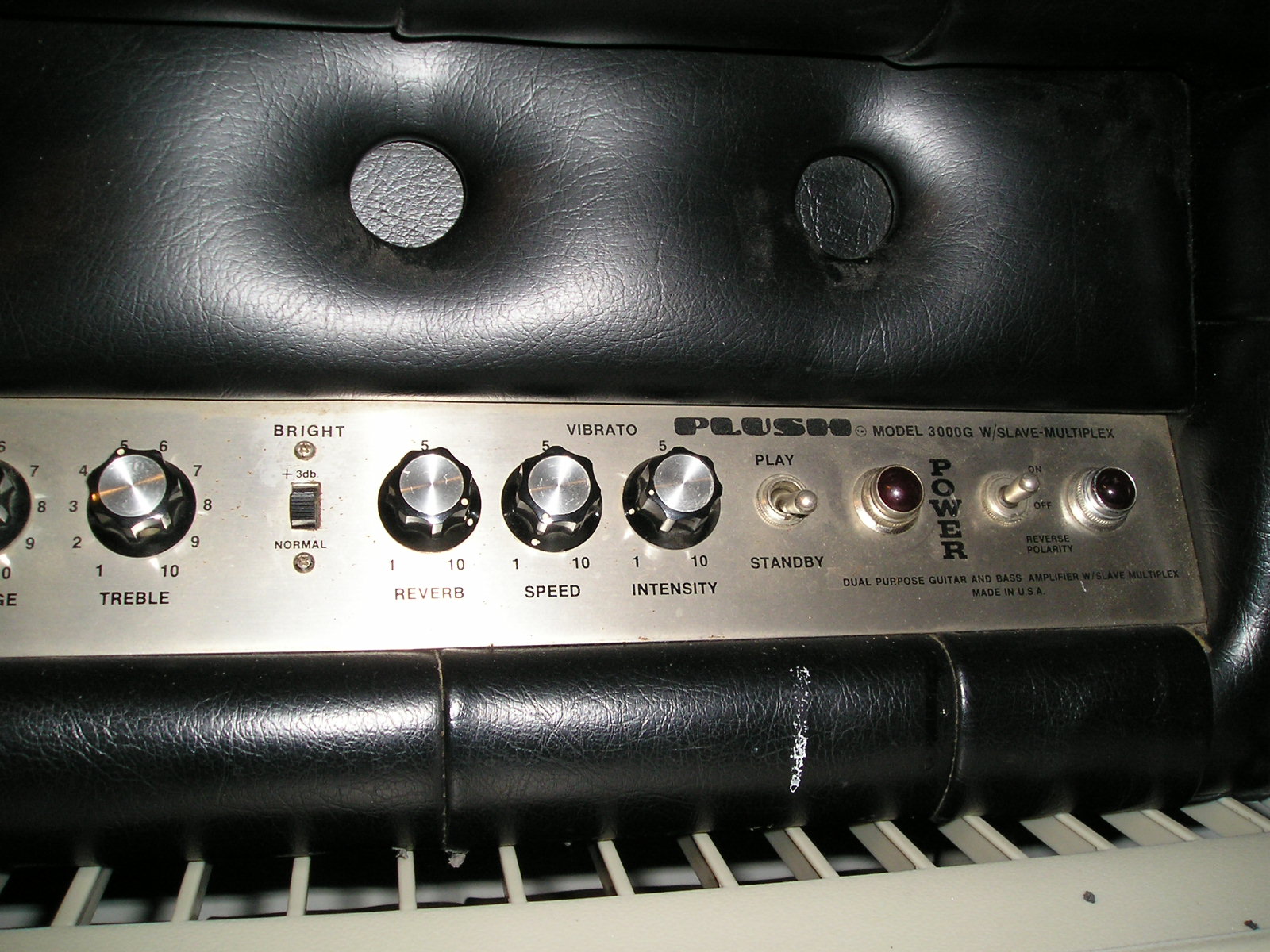

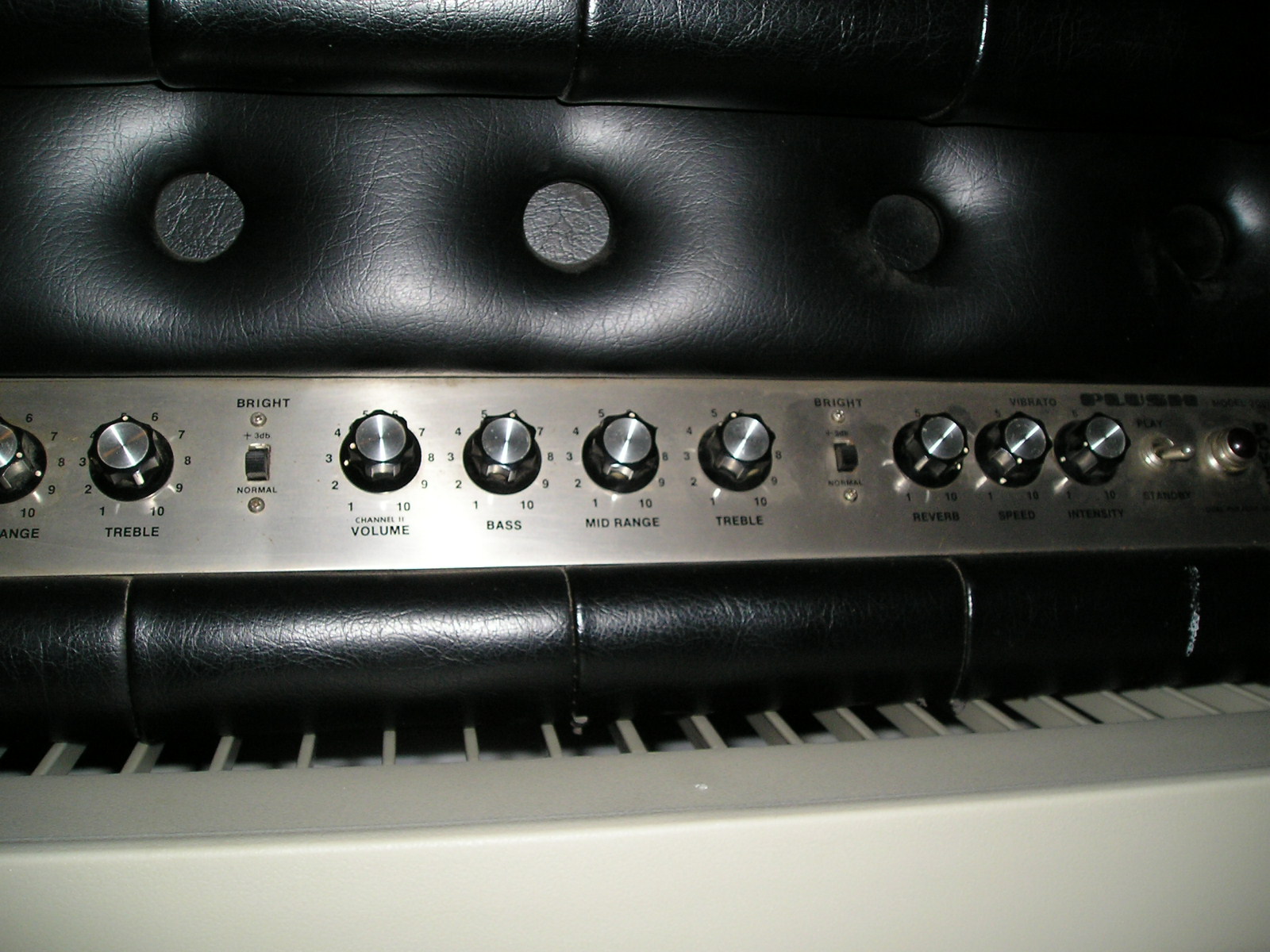

Plush 3000G Control Panel View

The controls are the same as the 1000 with the added switches mentioned above.

Plush 3000G Chassis Bottom View
Have to upload this shot still, but it can be seen that the circuit is listed as Prototype.
