Photo Page 6

8000 series Head - This particular head was found in a shop in California. Claims were made that someone from Matchless Amplifiers had modified it. When found it was loaded with 6L6GC tubes. Underneath on the chassis is written Prototype. This amplifier uses 6 power tubes and 6 preamp tubes.

spacer

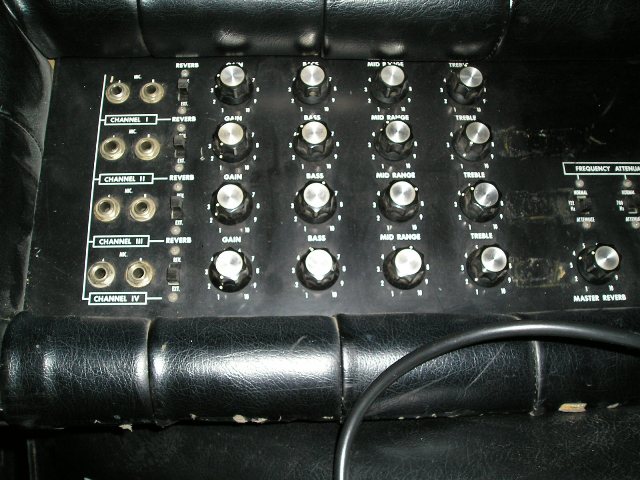

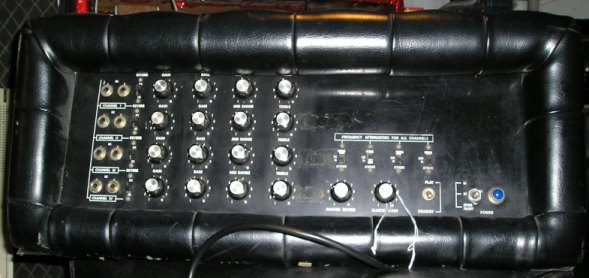

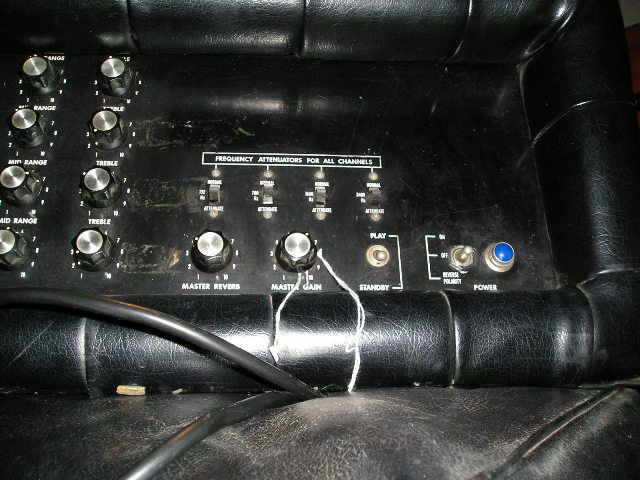

Plush PA head Front View
The PA head is based on the 1000/1060 amplifiers, 4 6L6 power tubes. The controls are simple for the four channels.

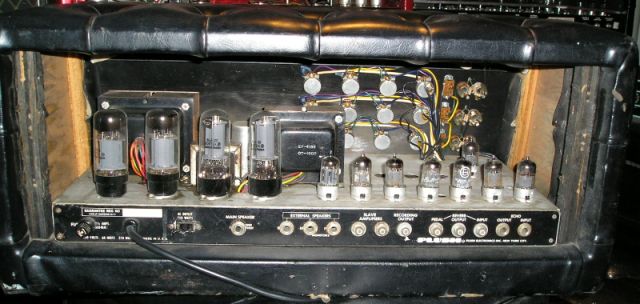

Plush PA Rear View
The transformers and choke from the 1000 amplifier, even stamped for those heads.

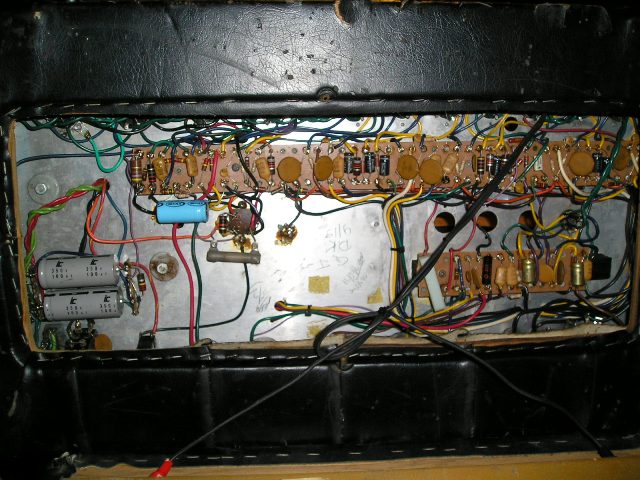

Plush PA bottom View

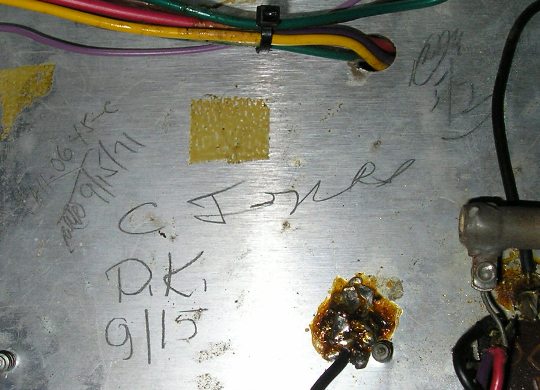

The date on the chassis puts this as from 1971

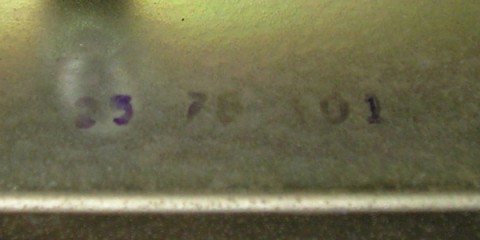

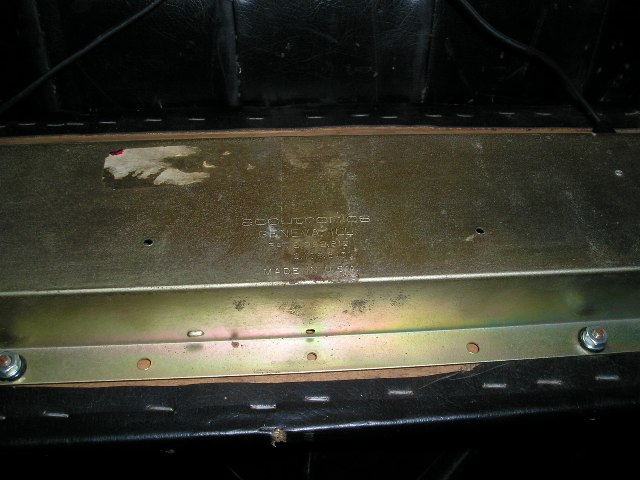

The reverb tank is accutronics
